WK2 Catch Can Install

9562 Views 27 Replies 9 Participants Last post by meeper, Jan 21, 2012

Mongoose9400

Discussion Starter · Jan 14, 2012 (Edited)

7

Got my Diablo Sport Catch Can Installed today. Fairly simple, just like the WK1. I used the kit I ordered for my WK1 and it works out great.

Tools needed:
3/8 Ratchet
13mm socket
Something to cut hose with

Parts:
M8-1.25 x 25 mm hex head bolt
About 2' of 1/2" inside diameter hose

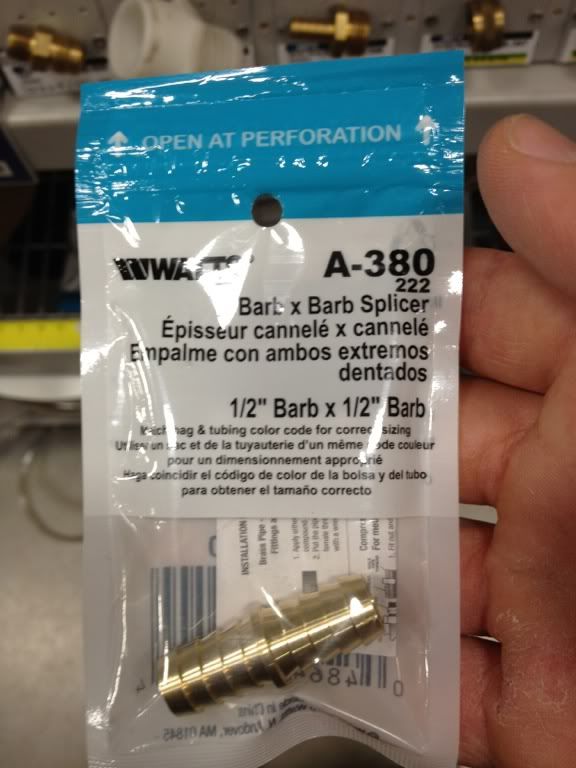

1/2"-1/2" barb connector (found at Lowes in plumbing aisle)

Steps:
Make it look like this

UPDATE: Using the 1/2"-1/2" barb connector splice the short piece of hose into the factory 90 elbow

See less See more

Reactions: 1

1 - 20 of 28 Posts

1BAMFR

· #2 · Jan 14, 2012

Very nice!

Props to all you wk2 guys for figuring this kind of shit out for everybody!

Reactions: 1

meeper

· #3 · Jan 14, 2012

do you need these on the 6.4L ? the intake looks much different

Mongoose9400

Discussion Starter · #4 · Jan 14, 2012

meeper said:
do you need these on the 6.4L ? the intake looks much different

I'll let you know in a few hundred miles when I open the can up and see what it caught

J&D's SRT's

· #5 · Jan 14, 2012

Damn Zac looks nice. Hats off to you for doing that today with the wind chill below zero. I'm thinking BT should send you some free braided hoses to match the others for test fitting & getting their CC to work on the WK2.

Jim

Reactions: 1

Mongoose9400

Discussion Starter · #6 · Jan 14, 2012

Yeah it was f ing cold out.

This morning was worse getting the tail light harness out and a couple other things.

Sent from my iPhone 4S

J&D's SRT's

· #7 · Jan 14, 2012

Did you at least hit up that car wash to try & block some wind? I would have.

Jim

Mongoose9400

Discussion Starter · #8 · Jan 14, 2012

J&D's SRT's said:
Did you at least hit up that car wash to try & block some wind? I would have.

Jim

naw, did it in the parking lot real quick. got some dirty towels for house keeping now lol.

Mongoose9400

Discussion Starter · #9 · Jan 18, 2012

I'll be opening the catch can soon to take a peak inside. Got about 1800 miles on it since I installed the catch can around 50 miles. I'll get pics and post later tonight.

Sent from my iPhone 4S

billettechnology

· #10 · Jan 18, 2012

J&D's SRT's said:
I'm thinking BT should send you some free braided hoses to match the others for test fitting & getting their CC to work on the WK2.

Jim

I bet BT had that figured out a few months ago..

If you add a 1/2-1/2 connector to the factory 90* rubber peice on the front part of the motor
it makes it a little cleaner set up..

That how we have it set up..

J&D's SRT's

· #11 · Jan 18, 2012

billettechnology said:
I bet BT had that figured out a few months ago...

It was worth a try for him at least. hahaha

Jim

Reactions: 1

Mongoose9400

Discussion Starter · #12 · Jan 18, 2012

billettechnology said:
I bet BT had that figured out a few months ago..

If you add a 1/2-1/2 connector to the factory 90* rubber peice on the front part of the motor
it makes it a little cleaner set up..

That how we have it set up..

I was running around town looking for a 1/2"-1/2" splice connector, I couldn't find a straight one. Just 90 elbows. So I did the tube for now. I wanted the catch can on sooner than later

that's a easy fix down the road.

Sent from my iPhone 4S

Rambit

· #13 · Jan 19, 2012

Post added to our How To section - http://www.cherokeesrt8.com/forums/showthread.php?t=60611.

Thanks!

Bernie

Mongoose9400

Discussion Starter · #14 · Jan 19, 2012

Rambit said:
Post added to our How To section - http://www.cherokeesrt8.com/forums/showthread.php?t=60611.

Thanks!

Bernie

No problem! Thanks for adding so others can use.

Mongoose9400

Discussion Starter · #15 · Jan 19, 2012

4

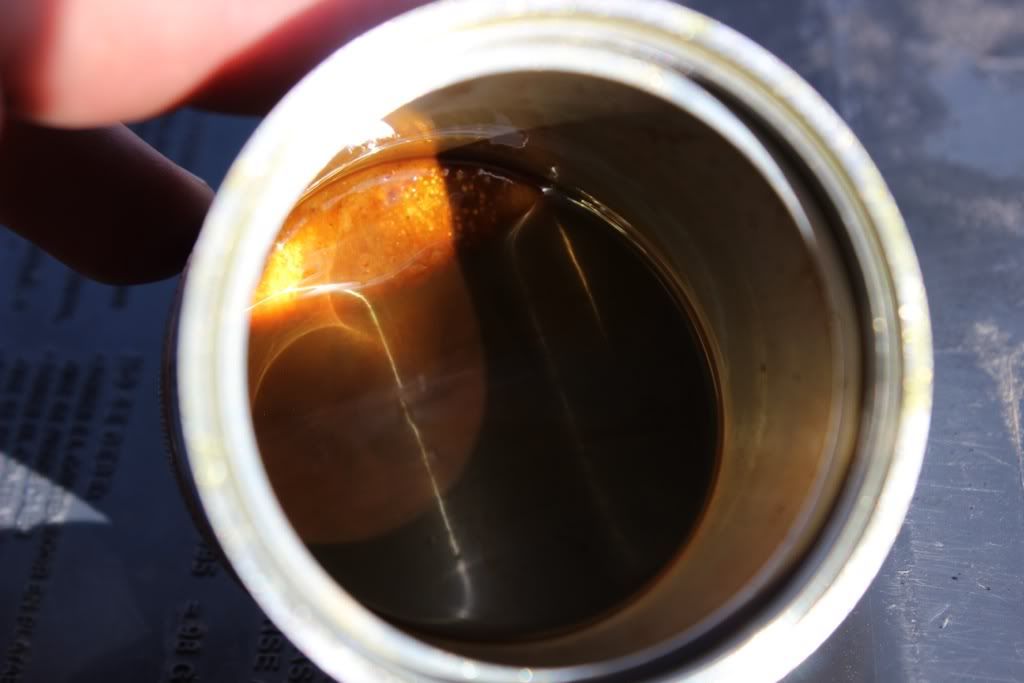

Here are the results. Catch can installed around 50 miles on the odometer, got 18xx as of now when I opened it up. I changed the oil at 300 miles to get the break in oil out and added new (running Mobil 1 0W-40). After that I took at 1450 miles trip. Here is what I have.

Dumped into a bottle to see amount easier.

See less See more

Reactions: 2

SRTat3U

· #16 · Jan 19, 2012

id say its working

J&D's SRT's

· #17 · Jan 19, 2012

Not a whole bunch but still enough to have the need for one. Wonder if city driving would produce a larger amount.

Jim

SRTat3U

· #18 · Jan 19, 2012

thats about how much i get in my wk1

Mongoose9400

Discussion Starter · #19 · Jan 19, 2012

J&D's SRT's said:
Not a whole bunch but still enough to have the need for one. Wonder if city driving would produce a larger amount.

Jim

Exactly, it shows that it is needed! So this is indeed a good mod for the 6.4

meeper

· #20 · Jan 19, 2012

i still cant believe chrysler designed a motor with so much crank pressure / vacuum to make us need one of these, great work!
