Wires Through the firewall / Dash ?

There is a unused rubber grommet hole filler just to the left of the brake booster on the engine side, maybe 6" away. Slice it open and push you wired thru that

thanks i will look for that tomorrow...

Grommet

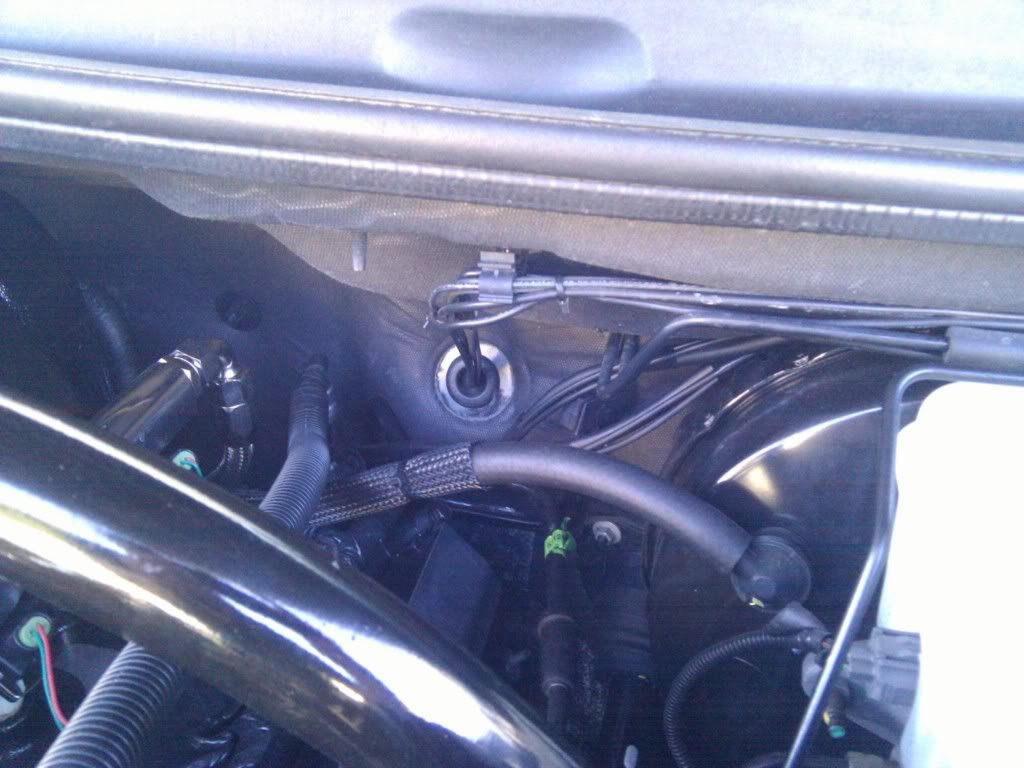

Like Jeep Trick said. You can see it here just below the yellow cap. At least it is here on my 06.

http://i257.photobucket.com/albums/hh217/teda1/jeep/DSC00671.jpg

teda said:

Like Jeep Trick said. You can see it here just below the yellow cap. At least it is here on my 06.

http://i257.photobucket.com/albums/hh217/teda1/jeep/DSC00671.jpg

Click to expand...

thats awesome pic, thank you i will look tomorrow AM b4 work

teda said:

Like Jeep Trick said. You can see it here just below the yellow cap. At least it is here on my 06.

http://i257.photobucket.com/albums/hh217/teda1/jeep/DSC00671.jpg

Click to expand...

Nice engine bay - where did you pick up the CF covers?

digi said:

Nice engine bay - where did you pick up the CF covers?

Click to expand...

Black Ops Auto Works, they are not a supporting vendor here

I just got mine without the Hemi 6.1 on them, straight CF

Sorry guys the firewall on my 2010 looks nothing like in the photo....

Yes, mine has a cover over the entire firewall, i will move some of it to see if that grommet is behind it

My 2010 is the same way with no hole there. I didn't even know there was one there on previous models until Chad(CMN1) pointed it out. I never did move any of the cover to check behind it though.

i just checked under the heat shield and the dash and there are no spare holes.... i think I'm going to drill with a hole saw and get some grommets

meeper said:

Yes, mine has a cover over the entire firewall, i will move some of it to see if that grommet is behind it

Click to expand...

BullsF6512 said:

My 2010 is the same way with no hole there. I didn't even know there was one there on previous models until Chad(CMN1) pointed it out. I never did move any of the cover to check behind it though.

Click to expand...

Now you got me really curios. Post up some picks of how it looks

I would be surprised they made a change like that mid production

Jeep Trick said:

Now you got me really curios. Post up some picks of how it looks

I would be surprised they made a change like that mid production

Click to expand...

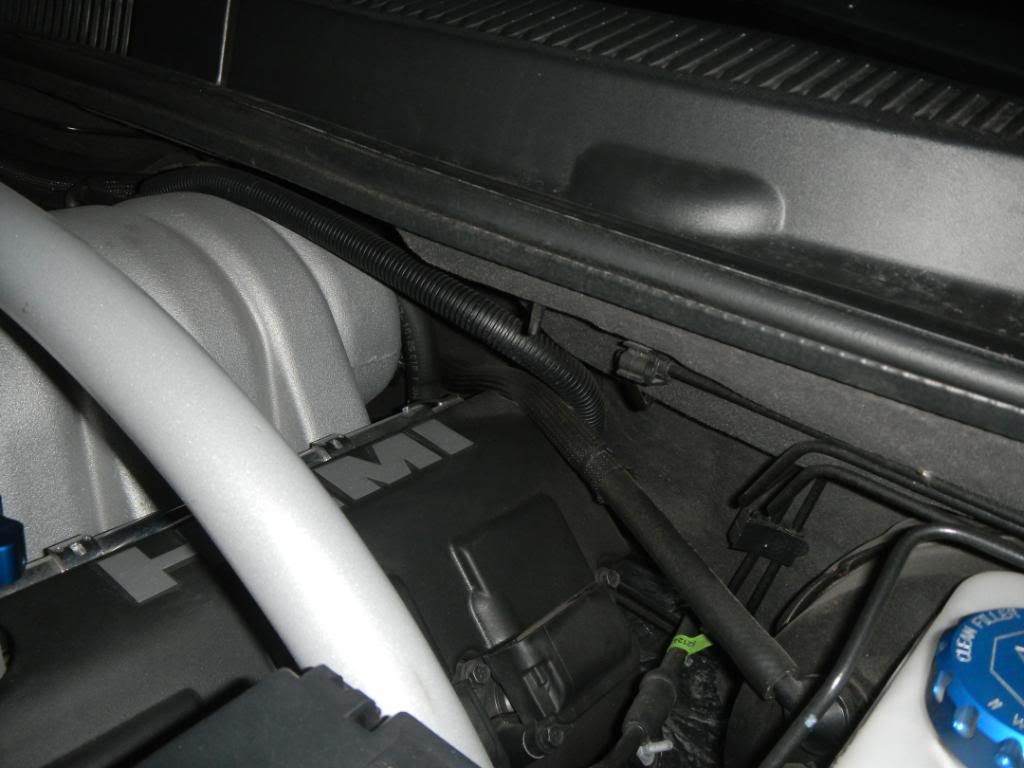

looks just like that but missing the grommet and hole... and the padding is all the way across

There is a body plug in the floor in front of the driver's seat you can drill out and come through if you wanted to avoid drilling a hole in sheet metal. The body plug is plastic.

i will look at that, thanks

Remembering this topic from the past, only some of them have the hole for whatever reason. I couldn't find it on my 09 before.

Jim

In my '07 there is a used plug with two small wires that route themselves just behind the glovebox. It's very close to the PCM. I'm not sure what you're needing to run, but i just figured I would chime in.
