you should contact Builder Bill, he should know the answer for anything drive train related.
__________________

www.dingsracing.com
I'm gettting frustrated with modding
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #12
Old 11-03-2012, 01:18 PM
DarknightSRT8's Avatar
DarknightSRT8 DarknightSRT8 is offline
Senior Member

Join Date: Feb 2012
Posts: 440
Thanks: 8
Thanked 49 Times in 29 Posts
where did u find the parts to rebuild i think i hv to do mine
__________________

Ported manifold/90mm tb/OBX Headers/ppp stage 2 cam/ptcm/paramount 3800/D1 procharger




Reply With Quote Quick reply to this message
  #13
Old 11-03-2012, 02:54 PM
jabdelja jabdelja is offline
Member

Join Date: Jul 2010
Location: northern va
Posts: 75
Thanks: 0
Thanked 21 Times in 7 Posts
Factory mopar parts
__________________
2006 SRT8 Jeep: Black, AFE Stage 2 intake, 180 Jet Tstat, BT Catch can, Blue Tops, Vred 315 combo, 15% tint.
Reply With Quote Quick reply to this message
  #14
Old 11-03-2012, 03:22 PM
DarknightSRT8's Avatar
DarknightSRT8 DarknightSRT8 is offline
Senior Member

Join Date: Feb 2012
Posts: 440
Thanks: 8
Thanked 49 Times in 29 Posts
ok thanks bro
Reply With Quote Quick reply to this message
  #15
Old 11-03-2012, 05:01 PM
Jack_Toepfer Jack_Toepfer is offline
Elite Contributing Member

Join Date: Nov 2010
Location: Buffalo NY
Posts: 2,617
Thanks: 786
Thanked 424 Times in 322 Posts
There is definitely a bracket connecting the exhaust to the drivetrain and it is a ***** to get. I used an open end wrench and about an hour to get both bolts. lol. I only put 1 back in. F that noise.
Reply With Quote Quick reply to this message
  #16
Old 11-03-2012, 09:37 PM
Ride4life686 Ride4life686 is offline
Lifetime Premium Member
Lifetime Premium Member

Join Date: Oct 2010
Location: Quantico, VA(NOVA)
Posts: 775
Thanks: 3
Thanked 42 Times in 37 Posts
Here is some info I got off my alldata.
Removal
Click image for larger version

Name:	ImageUploadedByAutoguide1352000166.727041.jpg
Views:	57
Size:	148.6 KB
ID:	25386
torque specs
Click image for larger version

Name:	ImageUploadedByAutoguide1352000180.152102.jpg
Views:	44
Size:	122.3 KB
ID:	25387
Hope this helps bro


Sent from my iPhone using Autoguide.com App
__________________
2009 JEEP SRT8 FULLY LOADED
PORT&POLISHED INTAKE MANIFOLD/ARRINGTON 90MM THROTTLE BODY/3000 STALL/INOVATE WIDEBAND/AMERICAN RACING LONGTUBE HEADERS/6K LOWS & FOGS/SOLO/DMH LOW PROFILE E-CUTOUTS/EIBACH SPRINGS/ADDCO SWAYBARS FRONT&REAR/NITTO MOTIVO 275 315/180 THERMOSTAT/LED TAILS/TINTED REAR FOGS/TRINITY/DORMANT BLUE & BLACK POWDER COATING UNDER HOOD AND CALIPERS
==================================================
Made with Built by

426 STROKER - 6.4L PORT&POLISHED DOMINATOR HEADS - STAGE 4 CAM - MOTOR MOUNTS - REAR CROSS MEMBER - ENDLINKS
==================================================
Tuned by Josh at HHP
552 Max Horsepower - 528 Max Torque


Reply With Quote Quick reply to this message
  #17
Old 11-05-2012, 02:39 AM
jabdelja jabdelja is offline
Member

Join Date: Jul 2010
Location: northern va
Posts: 75
Thanks: 0
Thanked 21 Times in 7 Posts
Thanks for the links!!
Im going to split the case while still attached to the tranny. I just need to find out the size of the bolt that holds the output coupler to driveshaft on. When i figure it all out ill do a mini diy.
Reply With Quote Quick reply to this message
  #18
Old 11-15-2012, 05:30 PM
jabdelja jabdelja is offline
Member

Join Date: Jul 2010
Location: northern va
Posts: 75
Thanks: 0
Thanked 21 Times in 7 Posts
Ok the bolt is a 32mm and need a deep drive socket to get it. I took the rear most plate off the case today. Went to undo the bolts to crack the center open and one sheared right in half. Tomorrow im going to get a bolt extractor kit to remove it and attempt to finish the job. Does anyone know if the dealer sells those bolts? If so what the part number is. Im going to attempt to do a diy write up if i can finish. Any input would be much appreciated
Reply With Quote Quick reply to this message
  #19
Old 11-16-2012, 03:04 PM
jabdelja jabdelja is offline
Member

Join Date: Jul 2010
Location: northern va
Posts: 75
Thanks: 0
Thanked 21 Times in 7 Posts
Torn down the transfer case today.

Need
Full tool set, assorted extensions. Mainly 15mm and 10 mm sockets.

1.Rolled my rig up on wheel ramps to start the project(ebrake and wheel stops).

2.Unbolted the rear drive shaft that comes out of the t-case(4 bolts 15mm)

3. drain the fluid out of the tcase

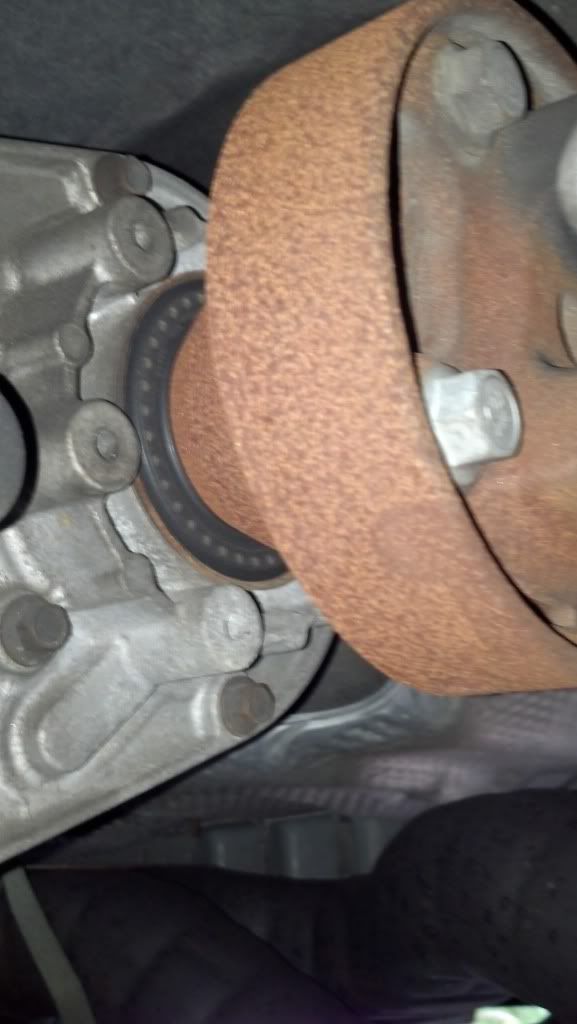

4.Remove 32mm bolt that holds the drive shaft coupler to the output shaft and take off the coupler(may require a few light taps from a hammer) A little fluid will leak out the result is pictured.


5. Unbolt the rear most plate on the t-case itself (10mm) There are two pry spots on the plate on on the bottom and one on top, since the case is still installed on the car you have to take a large flat head and pry it off with the bottom one, it takes alittle cause you have to break the seals. After you take the plate off you will see below. The two gear like metal pieces need to be removed.


6. Unbolt the center of the t-case (may need some liquid wrench) I sheared one bolt so i had to drill it out. Just be careful when removing them.

7. Unplug the hose that is on the top of the case

8. Split the case using a larger screw driver.

9. After you remove the case theres a snap ring holding the plate into the clutch basket.
remove the snap ring and the top plate will come off and the clutches will be exposed. With the clutches removed it will look like so.


10. Took the case out and cleaned it up, new clutches and plates.



11. Put them back the way they came out. Make sure the magnet get cleaned and everything gets wiped out good.

12.Use high temp silicone to re-seal the case back together when its time to reinstall the half.

13. reinstall the rear most plate, make sure you seal inside where you see the old gasket as well as the outside.

14. torque all the bolts down and reinstall the hose on the top of the case.

15. Let the case dry before you add the fluid. Then add the fluid.

16. Reinstall the t-case motor and plug is back in.

17. Drive it and enjoy a fresh t-case.


old clutches



The clutches i removed were terrible, burnt all up. My case hummed alittle until i drove it around the neighborhood, now its functioning good.
I rode 2wd for over one year and now im happy and back to awd. Thanks for anyone who helped me. It ended up costing around $500 bucks to rebuild completely.

Ill get the part numbers that i purchased.
Reply With Quote Quick reply to this message
