  #21
Old 11-28-2012, 08:56 AM
RBugnitz's Avatar
RBugnitz RBugnitz is online now
Senior Contributing Member

Join Date: Feb 2008
Posts: 651
Thanks: 73
Thanked 49 Times in 45 Posts
BUMP...
So anyone able to snap a quick pic of thier "resistors" wired into LED turn/park signals??? Been wanting to do this mod for while now but been putting off. Want a nice picture to look at to make installation smoother. PLEASE! PLEASE!! PLEASE!!! post a pic for a friend in need. :-(
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #22
Old 11-28-2012, 09:01 AM
CHUCKTOWNSRT8's Avatar
CHUCKTOWNSRT8 CHUCKTOWNSRT8 is online now
Elite Contributing Member

Join Date: Jun 2008
Location: Charleston, SC
Posts: 2,504
Thanks: 155
Thanked 464 Times in 334 Posts
I'll try to snap one for you in a few
__________________
Stage 6 Turbocharged 6.1L Silver Jeep SRT8. PWR 419 9.5:1 built for boost/ PWR Mean Street Heads/ Ported Intake/AR 90mm/ PWR Turbo cam/ SHR Tranny/ FTI 3200 Stall Converter. Tuned by Jerseyboy 10.54 @130mph on 12 psi on stock bottom end. Stroker #'s coming soon!. Ballin on a budget!
[SIGPIC][/SIGPIC]
Reply With Quote Quick reply to this message
  #23
Old 11-28-2012, 10:54 AM
DCSpecial's Avatar
DCSpecial DCSpecial is offline
Supporting Vendor

Join Date: Mar 2008
Location: Psych Ward
Posts: 7,305
Thanks: 313
Thanked 443 Times in 313 Posts
I agree with using weatherproof connections and heat shrink. I always toss the quick taps that come with resistors in the garbage. For that matter I always wireloom the resistor wires for added protection.

On 06-08s I've needed to use 1.5ohm of resistance and 3 ohm on 09-10 with OEM HIDs. That's with the switchbacks I use.
__________________
Daniel C. - 08 SRT8
Challenger Hood-Flat Black Wheels-Tinted LED Tails/etc-Kicker-Eibach/RM-Bwoody Links-90mm TB-P&P Intake Manifold-ProCharger D1SC-PPP Pro Series Stage 1 Cam-PSI Springs-American Racing Headers-Mopar Exhaust-5" Tips-JerseyBoy CMR Tune-Trinity w/AFR-80lb Injectors-Fore Rails-Wilwoods-SHR Trans-FTI Performance Convertor-ATI Flexplate-Stage6 Dual Pumps-BT CC & Underhood-R1 Cryo'd Rotors



Reply With Quote Quick reply to this message
  #24
Old 11-28-2012, 11:35 AM
nyhockeyref93's Avatar
nyhockeyref93 nyhockeyref93 is offline
Premium Member
Premium Member

Join Date: Mar 2011
Location: Long Island
Posts: 934
Thanks: 13
Thanked 76 Times in 64 Posts
Holy shit that's bright, I already have problems with blinding everyone on the road. I even get cops to shine their spotlight in my face because my HID's are so bright. Good thing is I can spot a cop a mile away with my lights bouncing off their reflectors on their cars.

Can some one post more pics of these turned on ? And are these switchbacks? And what are switchbacks, don't know much about lights lol


Sent from my iPhone using AutoGuide.com App
__________________


2007 Silver Jeep SRT8...that's all you need to know
Reply With Quote Quick reply to this message
  #25
Old 11-28-2012, 11:49 AM
DCSpecial's Avatar
DCSpecial DCSpecial is offline
Supporting Vendor

Join Date: Mar 2008
Location: Psych Ward
Posts: 7,305
Thanks: 313
Thanked 443 Times in 313 Posts
I always use switchbacks. They are white with the running lights on but switch to amber with the turn signal.

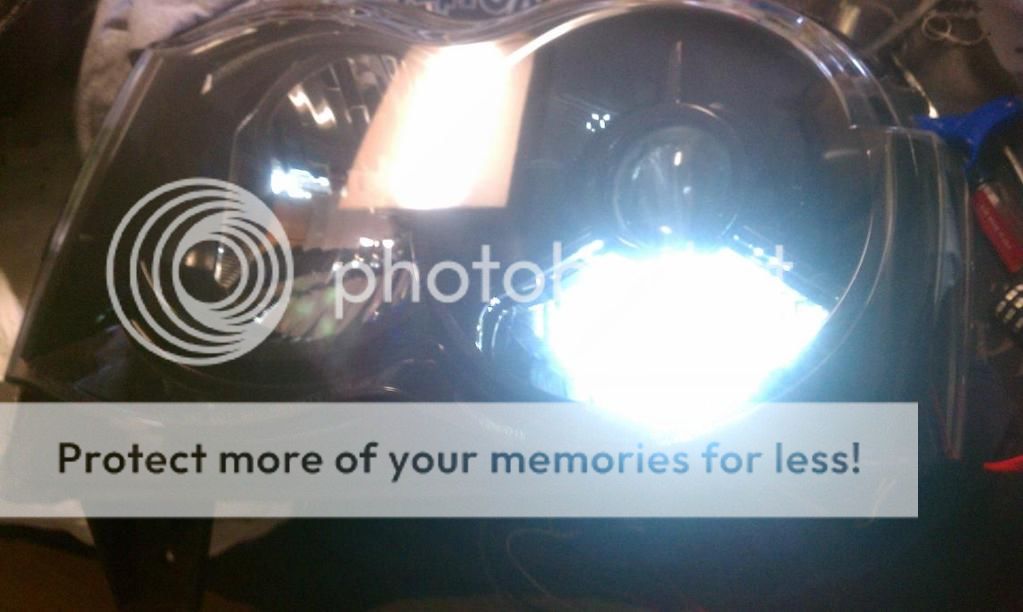

Here's a pic I have test firing to make sure I had it installed in the socket correctly (they are polarity sensitive):
Reply With Quote Quick reply to this message
  #26
Old 11-28-2012, 11:58 AM
RBugnitz's Avatar
RBugnitz RBugnitz is online now
Senior Contributing Member

Join Date: Feb 2008
Posts: 651
Thanks: 73
Thanked 49 Times in 45 Posts
Quote:
Originally Posted by DCSpecial View Post
I always use switchbacks. They are white with the running lights on but switch to amber with the turn signal.

Here's a pic I have test firing to make sure I had it installed in the socket correctly (they are polarity sensitive):

Thanks for the quick feed back.... Is there anyway you can get a pic of the wiring witht eh resistors wired in to make lights flash. When i intstall my 3157 LED bulbs the turn on... but they dont flash correctly. They Stay on highest flash and do not flicker. Im hoping the resistor will fix issue. Not sure if i bought correct one. I got a load resistor 3 ohm 50w. I think i may have ordered wrong part. Seeing a pi would help me identify the correct resistor needed. Sorry not very good with electical... Thanks again though brotha!
Reply With Quote Quick reply to this message
  #27
Old 11-28-2012, 12:00 PM
DCSpecial's Avatar
DCSpecial DCSpecial is offline
Supporting Vendor

Join Date: Mar 2008
Location: Psych Ward
Posts: 7,305
Thanks: 313
Thanked 443 Times in 313 Posts
I don't have any pics of the wiring. You tie it into the turn signal wire (can test with a test light to see what wire it is) and then I run the other end to chassis ground.

If the 3ohm doesn't take care of it, try 1.5ohms. Which would be two 3ohm resistors wired in parallel. If you wired them in series that would be 6ohm.
Reply With Quote Quick reply to this message
  #28
Old 01-15-2013, 01:53 PM
RBugnitz's Avatar
RBugnitz RBugnitz is online now
Senior Contributing Member

Join Date: Feb 2008
Posts: 651
Thanks: 73
Thanked 49 Times in 45 Posts
BUMP.....

Any one willing to post pics of wiring config(resistors mainly hooked up) for the LED Turn/Parking bulbs on '07? Would like to get these installed ASAP!!!!

Please help a brotha out!!! :-(
Reply With Quote Quick reply to this message
  #29
Old 01-15-2013, 02:04 PM
DCSpecial's Avatar
DCSpecial DCSpecial is offline
Supporting Vendor

Join Date: Mar 2008
Location: Psych Ward
Posts: 7,305
Thanks: 313
Thanked 443 Times in 313 Posts
Tap to the turn signal wire with one end......other end to chassis ground. Pretty simple. Test light will tell you what wire is the turn signal wire.
Reply With Quote Quick reply to this message
  #30
Old 01-16-2013, 05:19 PM
HEMI TME's Avatar
HEMI TME HEMI TME is online now
Major Contributing Member

Join Date: Dec 2010
Location: Chi-Town burbs
Posts: 1,493
Thanks: 460
Thanked 572 Times in 341 Posts
Radio shack just had 4.7's but I paralleled em and gets me a faster flash that looks cool.
Thanks all ya's
__________________
06 Flat Graphite wrap, 142,000 mile daily driver!
ET.....10.61
mph..130.98
60ft..1.61
76mm CompTurbo
Special thanks to ebay
[/COLOR]DaToonA ain't Frikn around.....
http://youtu.be/f9FxOqs2Xx8

Last edited by HEMI TME; 01-16-2013 at 05:23 PM.
