Quote:
Originally Posted by Relwarc View Post
I'll see if i can snap a pic for you. The resistor goes between the green and black. not in line in the green and black. You need to splice into the green and black.
OH I think i get it now! More like an "H" with resistor in middle connecting green and black wire? A pic would be awesome if you could snap one... Thanks in advance Brotha!
RBugnitz is offline
Sponsored Links
Advertisement

post #12 of 30 (permalink) Old 09-11-2012, 11:18 AM
Major Contributing Member

Relwarc's Avatar

Join Date: Mar 2010
Location: Baltimore, MD
Posts: 1,847
Thanks: 182
Thanked 363 Times in 237 Posts
exactly. I'll see what I can do about a pic.

-Doug '09 Modern Blue SRT8 (SOLD). Antivenom hood, dark tint, first to be officially "Bruised!" Best time: 12.65 @ 107
My Drive SRT owner profile!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

My Project: Bruised and Blown (SOLD
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
)
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Relwarc is offline
post #13 of 30 (permalink) Old 09-11-2012, 11:46 AM
Elite Contributing Member

CHUCKTOWNSRT8's Avatar

Join Date: Jun 2008
Location: Charleston, SC
Posts: 2,536
Thanks: 163
Thanked 513 Times in 349 Posts
You can use splice clips, but I would use heat shrink and terminal connectors for a nice OEM look. Its how the pros do top notch work.

Stage 6 Turbocharged 6.1L Silver Jeep SRT8. PWR 419 9.5:1 built for boost/ PWR Mean Street Heads/ Ported Intake/AR 90mm/ PWR Turbo cam/ SHR Tranny/ FTI 3200 Stall Converter. Tuned by Jerseyboy 10.54 @130mph on 12 psi on stock bottom end. Stroker #'s coming soon!. Ballin on a budget!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

[SIGPIC][/SIGPIC]
CHUCKTOWNSRT8 is offline
post #14 of 30 (permalink) Old 09-11-2012, 12:54 PM Thread Starter
Major Contributing Member

RBugnitz's Avatar

Join Date: Feb 2008
Posts: 1,111
Thanks: 461
Thanked 241 Times in 175 Posts
Garage
Quote:
Originally Posted by RBugnitz View Post
OH I think i get it now! More like an "H" with resistor in middle connecting green and black wire? A pic would be awesome if you could snap one... Thanks in advance Brotha!
Quote:
Originally Posted by Relwarc View Post
exactly. I'll see what I can do about a pic.
Thanks Man for your assistance... a pic would be greatly appreciated!
RBugnitz is offline
post #15 of 30 (permalink) Old 09-11-2012, 12:57 PM Thread Starter
Major Contributing Member

RBugnitz's Avatar

Join Date: Feb 2008
Posts: 1,111
Thanks: 461
Thanked 241 Times in 175 Posts
Garage
Quote:
Originally Posted by CHUCKTOWNSRT8 View Post
You can use splice clips, but I would use heat shrink and terminal connectors for a nice OEM look. Its how the pros do top notch work.
Are you one of these pros, have a pic? LOL I would like to see it and replicate as cleanly/professional as possiable! And will LED turn/parking light work with stock side bulb after installed... Or does that have to be LED bulb as well do you know?
RBugnitz is offline
post #16 of 30 (permalink) Old 09-11-2012, 12:58 PM
Major Contributing Member

Relwarc's Avatar

Join Date: Mar 2010
Location: Baltimore, MD
Posts: 1,847
Thanks: 182
Thanked 363 Times in 237 Posts
I have stock side bulbs and LED turn signals no problem.
Relwarc is offline
post #17 of 30 (permalink) Old 09-11-2012, 01:32 PM
Elite Contributing Member

CHUCKTOWNSRT8's Avatar

Join Date: Jun 2008
Location: Charleston, SC
Posts: 2,536
Thanks: 163
Thanked 513 Times in 349 Posts
Quote:
Originally Posted by Relwarc View Post
I have stock side bulbs and LED turn signals no problem.
I think he's asking if the stock bulbs will work with the resistor installed. Not sure. I'll try it and see
CHUCKTOWNSRT8 is offline
post #18 of 30 (permalink) Old 09-11-2012, 02:15 PM
Member

uhoh's Avatar

Join Date: Feb 2012
Posts: 73
Thanks: 29
Thanked 0 Times in 0 Posts
i was just in the process of installing some led as well...

i was also in need of pics so i looked them up online and found this site with images take a look, pretty self explanitory.. you just gotta find wich cable is wich lol

http://store.ijdmtoy.com/Add-Load-Re...ight-a/169.htm
uhoh is offline
post #19 of 30 (permalink) Old 09-14-2012, 02:11 PM Thread Starter
Major Contributing Member

RBugnitz's Avatar

Join Date: Feb 2008
Posts: 1,111
Thanks: 461
Thanked 241 Times in 175 Posts
Garage
So can anyone "PLEASE" post a good pic or 2 of the resistors wired into turn signals/parking lights. I want to perform this mod but want to see it before attempting. Would be greatly appreciated!!!
RBugnitz is offline
post #20 of 30 (permalink) Old 09-18-2012, 08:36 AM
Senior Member

drastik211's Avatar

Join Date: Aug 2012
Location: Indiana
Posts: 120
Thanks: 51
Thanked 23 Times in 12 Posts

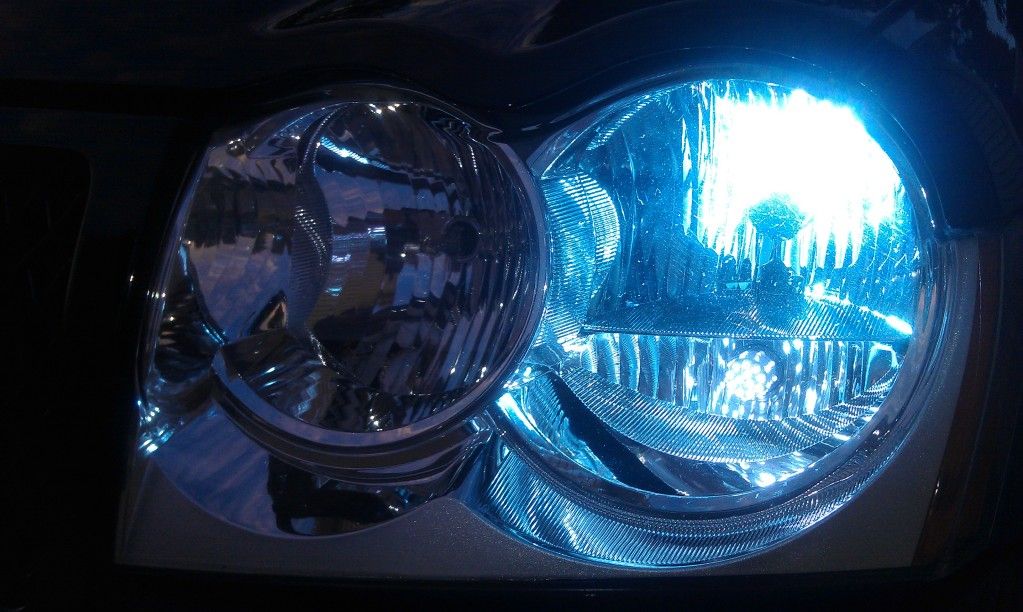

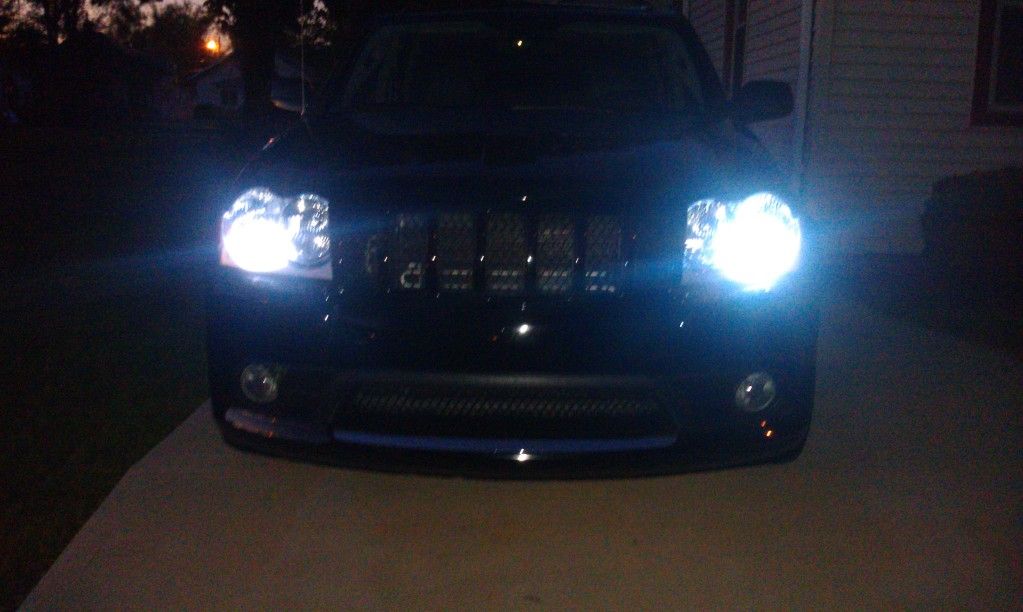

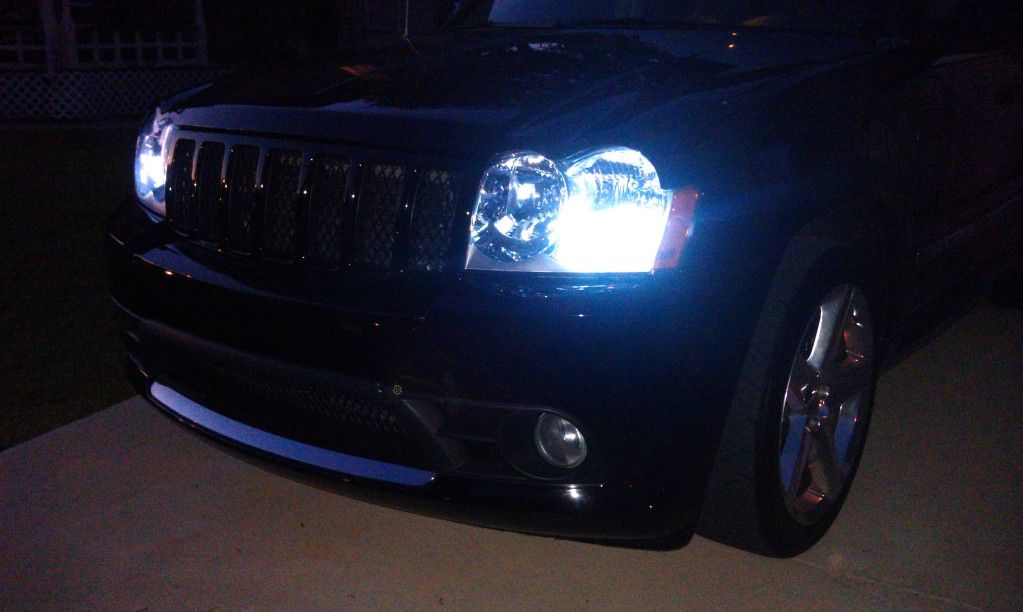

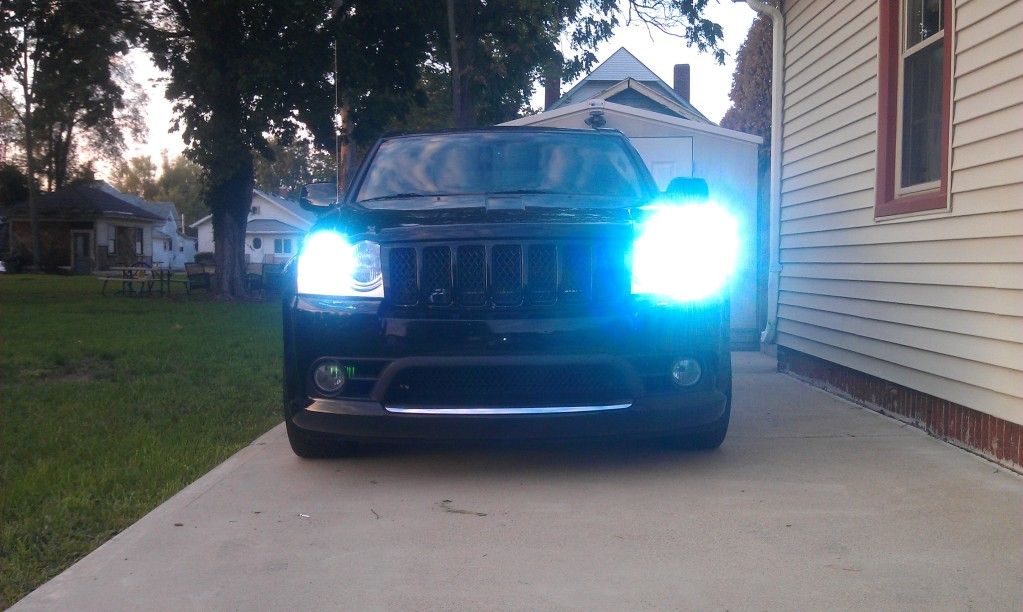

Bump! I just got my 60led turn signal bulbs and they work great. Now I just need to wire in the resistor so a pic would be nice before I try it. I'll probably wire it up tonight after work pic or not, an if I do I will post a pic for ya @RBugnitz. The first three pics are just the 60leds only which are pretty bright! The last 2 pics are when I tested the leds matching the 8000k hids, pretty close I think.










2012 JGCSRT: 22"Reps, 93oct Trinity canned tune, Borla S-type AB Exhaust, BWoody Long CAI, 5% Tint, Catch Can, Murdered Tails
SOLD 2006 JCGSRT8 13.29@103.4: Johan Tuned, Stainless Works non-catted Headers, Corsa catback, K&N Cold Air Intake, Jet180*t-stat, Catch Can, 5%Tint, 275/315s, Murdered, 8000k HIDs in Lows & Fogs, 8000k 60Leds parking lights

Last edited by drastik211; 09-19-2012 at 09:48 AM. Reason: Wrong link
